xCell Cyclops™ Convergence Sensor
As underground mines are getting deeper and more complex, ground conditions are becoming more challenging to manage. With Sandvik xCell Cyclops™ convergence sensors you get a real-time flow of convergence data delivered straight to your device. It enables you to monitor and deal with risks before they become dangerous and costly. With continuous monitoring, you make your mine a safer environment to work in while minimizing rehabilitation costs.
Key features:
- Easy installation. Instant monitoring
- WI-FI and Bluetooth Connectivity
- Simple Interface. Advanced Insights
xCell Cyclops™
Easy installation. Instant monitoring
xCell Cyclops™ convergence sensor is easily mounted to your MD, MDX or standard threaded bolt heads. The built-in ball pivot mechanism makes it easy to aim the sensor. Once installed, the unit continuously measures the distance from one side of the tunnel to the other using precision laser technology.
xCell Professor™
WI-FI and Bluetooth Connectivity
With Wi-Fi connectivity, the data is instantly available in the web and iOS interface. If Wi-Fi is not available, xCell Professor™ Bluetooth Low Energy gateway is mounted on already existing vehicles for drive-by data collection. When the vehicle passes a sensor, it automatically downloads the data stored in the memory of the sensor. Once the gateway connects to Wi-Fi, the latest information is directly uploaded to the cloud.
![xCell Cyclops™ Convergence Sensor xCell Cyclops™ Convergence Sensor](/fileadmin/user_upload/xCell_laptop_web_2124x1000.png)
Interface
Simple Interface. Advanced Insights.

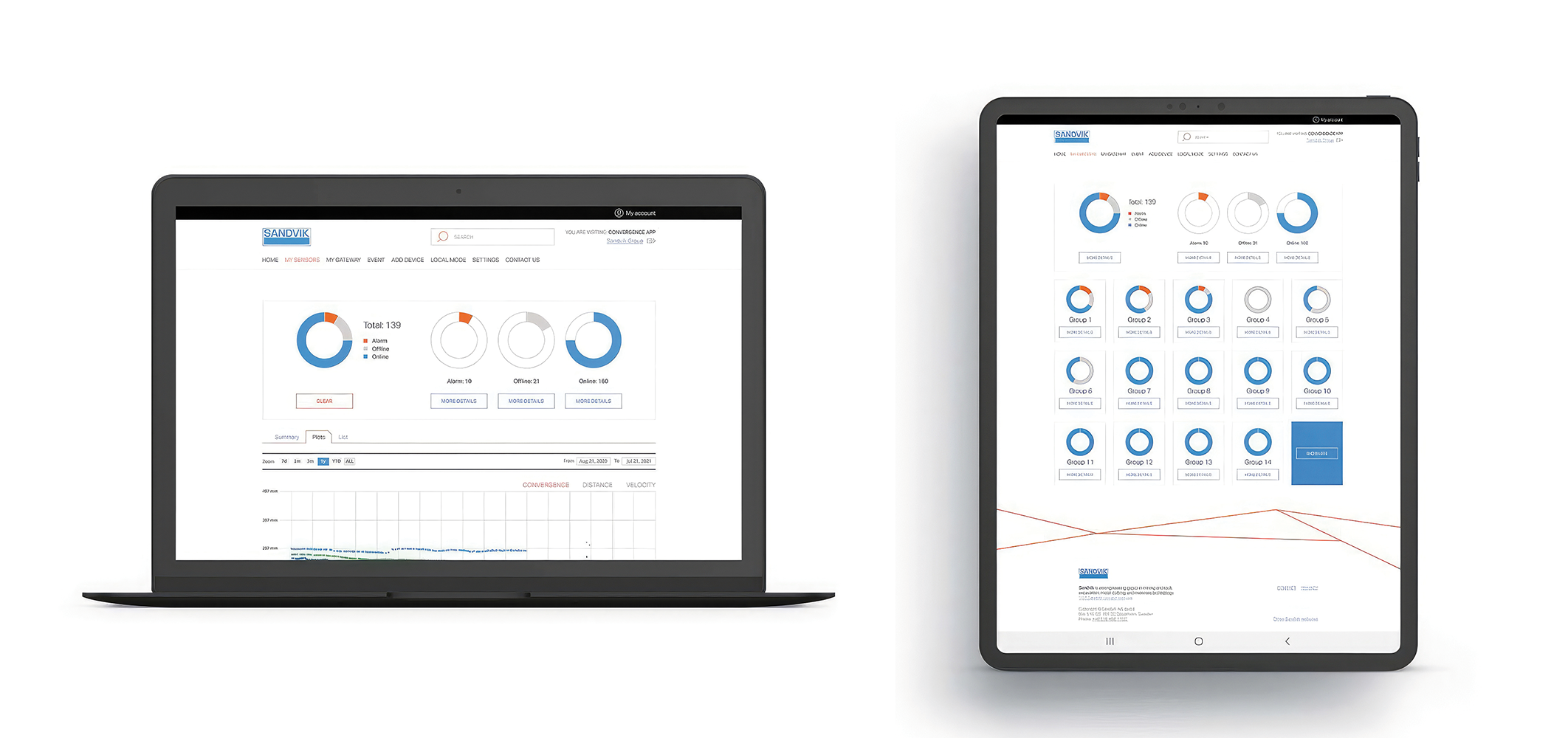

The cloud-based web and iOS interface enable admins and users to collect data, make configurations, and find visualizations of the sensor measurements. The interface automatically turns the data into graphs and charts showing location, distance, convergence and speed of movement. These parameters can be configured to set off notifications and alarms. Remote access to this data, in contrast to current manual measuring methods, creates safer and more efficient work environments while improving your knowledge of the rock mass behavior in your mine.
